HD25 Industrial Series Laminator w/Stand

HD25 Industrial Series Laminator w/Stand
Item# HD25

Product Description

**PLEASE CONTACT US FOR A FREIGHT QUOTE**

HD 25 Workhorse

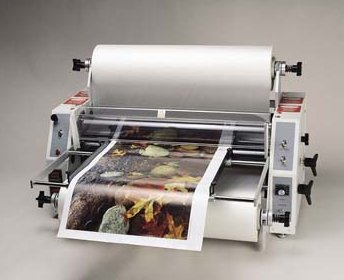

LEDCO Industrial Series Workhorse Laminator/Stand

The Heavy-Duty 25 is designed to: Provide years of service with minimum maintenance Laminate using films up to 10 mils thick, up to 25-inches wide, and at speeds up to 25 feet per minute Operates on 220 volts, 20 amps

Standard Features Intelligent heat controllers anticipate the heat demand for each job to maintain a set temperature Variable-speed operation for proper lamination of thicker films at slower speeds Removable heat shoes are easily unplugged and removed to clean or replace the laminating rollers Upper and lower rollers are driven to minimize material wrinkling or curling Pull rolls can be used as laminating rolls if the laminating rolls become damaged Pressure release control makes it easier to clear film and allows the rollers to turn during warm-up Retractable slitters remove the side scrap from both sides of each sheet as it moves through the laminator 18 extension bars Upper fan assembly provides additional cooling to run thicker films at higher speeds

Options Release liner take-up facilitates the removal of release liner when using pressure-sensitive films Casters Extra slitter heads Additional mandrels Footage counter

Brochure
